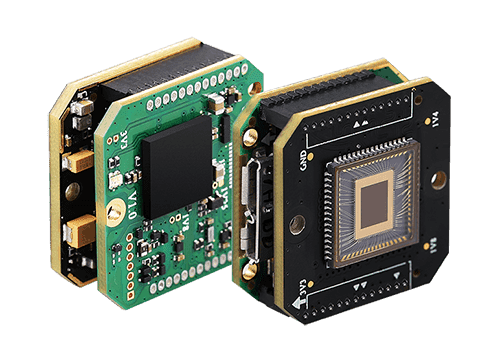

Board Level Camera

Retina Board Level cameras are high performance, machine vision, area scan cameras designed for OEMs. These cameras have the same specification as our standard cased camera. Retina board level models help OEMs to develop smaller, lighter, and lower cost solutions with embedded system connectivity and rich specifications.

Key Features of Retina Vision Camera

High Speed Performance

Large span for Resolutions available

Customization available

Ease of integration

Reliable solutions with long-term stability and precise image analysis

Serves ultra-High speed application with higher resolution

PRODUCTS LINEUP : RETINA VISION

Retina- B Series

These models are ideal for mobile, handheld and desktop device integration as they have proven compatibility with popular SBCs and Operating Systems including desktop Windows and Linux on ARM, x64 and x86.

Edit Content

Product Brochure

    Edit Content

    Product Enquiry

      Edit Content
      Edit Content
      Model No.
      Sensor Size
      Pixel (MP)
      Resolution
      Sensor Model
      Pixel size (μm)
      Maximum frame rate (fps)
      Shutter Type
      Sensor Type
      Lens Mount
      Color/mono

      RET-BC04125-GM/GC

      1/2.9”

      0.4

      720 × 540

      IMX297

      6.9

      125.2

      Global

      CMOS

      C

      RET-BM04125-GM/GC

      1/2.9”

      0.4

      720 × 540

      IMX297

      6.9

      125.2

      Global

      CMOS

      M12

      RET-BC1665-GM/GC

      1/2.9”

      1.6

      1440 × 1080

      IMX296

      3.45

      65.2

      Global

      CMOS

      C

      RET-BM1665-GM/GC

      1/2.9”

      1.6

      1440 × 1080

      IMX296

      3.45

      65.2

      Global

      CMOS

      M12

      RET-BM1665A-GM/GC

      1/2.9”

      1.6

      1440 × 1080

      IMX296

      3.45

      65.2

      Global

      CMOS

      M12

      RET-BC6030-GM/GC

      1/1.8”

      6

      3072 × 2048

      IMX178

      2.4

      30.7

      Rolling

      CMOS

      C

      RET-BM6030-GM/GC

      1/1.8”

      6

      3072 × 2048

      IMX178

      2.4

      30.7

      Rolling

      CMOS

      M12

      RET-BM6030A-GM/GC

      1/1.8”

      6

      3072 × 2048

      IMX178

      2.4

      30.7

      Rolling

      CMOS

      M12

      RET-BC12009-GM/GC

      1/1.7”

      12

      4000 × 3000

      IMX226

      1.85
      9.86

      Rolling

      CMOS

      C

      RET-BM12009-GM/GC

      1/1.7”

      12

      4000 × 3000

      IMX226

      1.85

      9.86

      Rolling

      CMOS

      M12

      Edit Content
      Model No.
      Sensor Size
      Pixel (MP)
      Resolution
      Sensor Model
      Pixel size (μm)
      Maximum frame rate (fps)
      Shutter Type
      Sensor Type
      Lens Mount
      Color/mono
      RET-BC03790-UM/UC

      1/5.6"

      0.3

      640 × 480

      /

      4.0

      790

      CMOS

      Global

      C

      RET-BM03790UM/UC

      1/5.6"

      0.3

      640 × 480

      /

      4.0

      790

      CMOS

      Global

      M12

      RET-BC13170-UM/UC

      1/2"

      1.3

      1280 × 1024

      PYTHON1300

      4.8

      170

      CMOS

      Global

      C

      RET-BM13170-UM/UC

      1/2"

      1.3

      1280 × 1024

      PYTHON1300

      4.8

      170

      CMOS

      Global

      M12

      RET-BC13210-UM/UC

      1/2"

      1.3

      1280 × 1024

      /

      4.8

      210

      CMOS

      Global

      C

      RET-BM13210-UM/UC

      1/2"

      1.3

      1280 × 1024

      /

      4.8

      210

      CMOS

      Global

      M12

      RET-BC13245-UM/UC

      1/2.7"

      1.3

      1280 × 1024

      /

      4.0

      245

      CMOS

      Global

      C

      RET-BM13245-UM/UC

      1/2.7"

      1.3

      1280 × 1024

      /

      4.0

      245

      CMOS

      Global

      M12

      RET-BS1661-UM/UC

      1/2.9"

      1.6

      1440 × 1080

      Sony IMX296

      3.45

      61.2

      CMOS

      Global

      S

      RET-BCS5036-UM/UC

      1/2.8"

      5

      2592 × 1944

      Sony IMX335

      2.0

      36

      CMOS

      Global

      CS

      RET-BS5036-UM/UC

      1/2.8"

      5

      2592 × 1944

      Sony IMX335

      2.0

      36

      CMOS

      Global

      S

      RET-BC6017-UM/UC

      1/1.8

      6

      3072 × 2048

      IMX178

      2.4

      17

      CMOS

      Rolling

      C

      RET-BM6017-UM/UC

      1/1.8"

      6

      3072 × 2048

      IMX178

      2.4

      17

      CMOS

      Rolling

      M12

      RET-BCS8022-UM/UC

      1/1.8"

      8

      3840 × 2160

      Sony IMX334

      2.0

      22

      CMOS

      Global

      CS

      RET-BS8022-UM/UC

      1/1.8"

      8

      3840 × 2160

      Sony IMX334

      2.0

      22

      CMOS

      Global

      S

      RET-BC12028-UM/UC

      1/1.7"

      12

      4032 × 3036

      IMX226

      1.85

      28

      CMOS

      Rolling

      C

      RET-BM12028-UM/UC

      1/1.7"

      12

      4032 × 3036

      IMX226

      1.85

      28

      CMOS

      Rolling

      M12
