Area scan camera

Retina Area Scan Camera stand for High Frame rates, ease of integration with third party library and image quality beyond the expectation. Our Area Scan series have robust industrial design which supports to create long-term reliability of the system.

Retain Area Scan includes CMOS-based colour and monochrome cameras with resolutions up-to 40 mega-pixels.

Key Features of Retina Vision Camera

High Speed Performance

Large span for Resolutions available

Customization available

Ease of integration

Reliable solutions with long-term stability and precise image analysis

Serves ultra-High speed application with higher resolution

PRODUCTS LINEUP : RETINA VISION

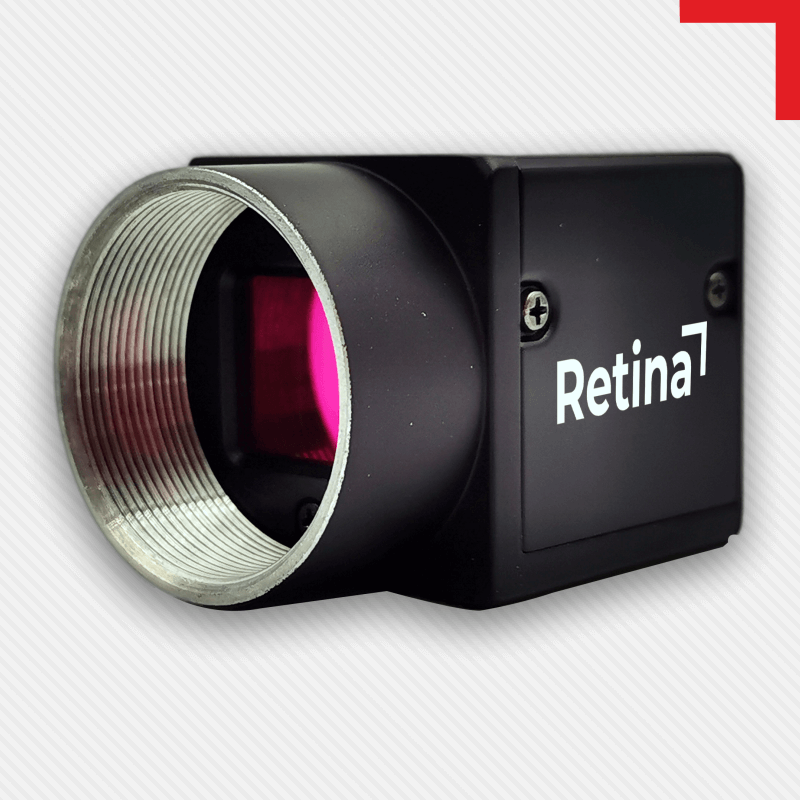

Retina - F Series

Retina F-Series cameras are foundation models. They are basic models and covers resolution from VGA to maximum 10 Mega-pixels. The series have GigE and USB3 connectivity protocols and having wide range of camera with CMOS Global and rolling shutter.

View Details

Edit Content

Retina- F Series GigE Camera
Retina- F Series USB3 Camera

Edit Content

Model No.	Sensor Size	Pixel (MP)	Resolution	Sensor Model	Pixel size (μm)	Maximum frame rate (fps)	Shutter Type	Sensor Type	Lens Mount
RET-04313-GM/GC	1/2.9"	0.4	720X540	Sony IMX287	6.9	312.9	Global	CMOS	C
RET-1399-GM/GC	1/2"	1.3	1280X1024	/	4.8	92.8	Global	CMOS	C
RET-1678-GM/GC	1/2.9"	1.6	1440X1080	Sony IMX273	3.45	78.2	Global	CMOS	C
RET-2060-GM/GC	1/1.7"	2	1624X1240	Sony IMX430	4.5	60	Global	CMOS	C
RET-2341-GM/GC	1/1.2"	2.3	1920X1200	Sony IMX249	5.86	41	Global	CMOS	C
RET-3238-GM/GC	1/1.8"	3.2	2048X1536	Sony IMX265	3.45	37.5	Global	CMOS	C
RET-5024-GM/GC	2/3"	5	2448X2048	Sony IMX264	3.45	23.5	Global	CMOS	C
RET-5124-GM/GC	1/2.5"	5.1	2592X1944	/	2.2	23.8	Rolling	/	C
RET-5124A-GM/GC	2/3"	5.1	2448X2048	Sony IMX264	3.5	23.5	/	CMOS	C
RET-5322-GM/GC	4/3“	5.3	2640X1968	OEM	6.6	21.4	Rolling	CMOS	C
RET-5322A-GM/GC	1"	5.3	2592X2048	PYTHON5000	4.8	22	Global	CMOS	C
RET-6017-GM/GC	1/1.8"	6	3072X2048	Sony IMX178	2.4	17	Rolling	CMOS	C
RET-6319-GM/GC	1/1.8"	6.3	3088X2064	IMX178	2.4	18.7	Rolling	CMOS	C
RET-90121-GM/GC	2/3"	9	4208X2160	GMAX2509	2.5	121	Global	CMOS	C
RET-10008-GM/GC	1/2.3"	10	3664X2748	MT9J003	1.67	8	Rolling	CMOS	C

Edit Content

Model No.	Sensor Size	Pixel (MP)	Resolution	Sensor Model	Pixel size (μm)	Maximum frame rate (fps)	Shutter Type	Sensor Type	Lens Mount
RET-03815-UM/UC	1/4"	0.3	640X480	OnSemi PYTHON300	815	59.6	Global	CMOS	C
RET-04527-UM/UC	1/2.9"	0.4	720X540	Sony IMX273	6.9	526.5	Global	CMOS	C
RET-13201-UM/UC	1/2"	1.3	1280X1024	/	4.8	201	Global	CMOS	C
RET-16249-UM/UC	1/2.9"	1.6	1440X1080	Sony IMX273	3.45	249.1	Global	CMOS	C
RET-2089-UM/UC	1/1.7"	2	1624X1240	Sony IMX430	4.5	89.1	Global	CMOS	C
RET-2341-UM/UC	1/1.2"	2.3	1920X1200	Sony IMX249	5.86	41	Global	CMOS	C
RET-23150-UM/UC	2/3"	2.3	1920X1200	OnSemi PYTHON 2000	4.8	150	Global	CMOS	C
RET-23164-UM/UC	1/1.2"	2.3	1920X1200	Sony IMX174	5.86	164	Global	CMOS	C
RET-5047-UM/UC	2/3"	5	2448X2048	Sony IMX264	3.45	47	Global	CMOS	C
RET-5131-UM/UC	1/2.5"	5.1	2592X1944	/	2.2	31	Rolling	/	C
RET-5136-UM/UC	2/3"	5.1	2448X2048	Sony IMX264	3.45	36	/	CMOS	C
RET-5152-UM/UC	2/3"	5.1	2448X2048	/	3.45	52	Global	/	C
RET-5170-UM/UC	2/3"	5.1	2448X2048	/	3.45	70	Global	/	C
RET-5180-UM/UC	2/3"	5.1	2448X2048	Sony IMX250	3.45	79.1	/	CMOS	C
RET-5327-UM/UC	4/3"	5.3	2640X1978	/	6.9	27	Rolling	/	C
RET-6360-UM/UC	1/1.8"	6.3	3088X2064	IMX178	2.4	60	Rolling	CMOS	C
RET-6371-UM/UC	1/1.8"	6.3	3072X2048	/	2.4	71	Rolling	/	C
RET-6460-UM/UC	1/1.8"	6.4	3088X2064	Sony IMX178	2.4	60	/	CMOS	C
RET-8318-UM/UC	1/1.8"	8.3	3840X2160	Sony IMX334	2.0	17.5	/	CMOS	C
RET-10008-UM/UC	1/2.3"	10	3664X2748	MT9J003	1.67	8	Rolling	CMOS	C

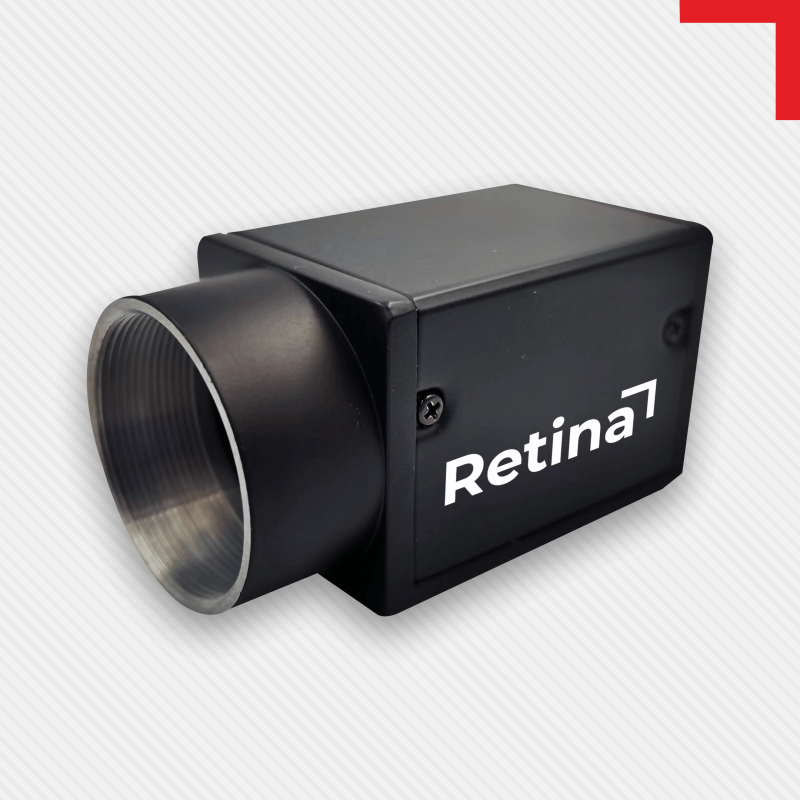

Retina - H Series

Retina H-Series cameras are High-end series models. This series have limited models as it is the latest developed series. H-Series has cameras with 04, 1.6, 5.0, 6.0 and 20.0 mega-pixels resolution. This series have built up with only Sony make CMOS sensors.

View Details

Edit Content

Retina- H Series GigE Camera
Retina- H Series USB3 Camera

Edit Content

Model No	Sensor Size	Pixel (MP)	Resolution	Sensor Model	Pixel size (μm)	Maximum frame rate (fps)	Shutter Type	Sensor Type	Lens Mount
RET-38125-GM/GC	1/2.9"	0.38	720X540	Sony IMX297	6.9	125.2	Global	CMOS	C
RET-1665-GM/GC	1/2.9"	1.5	1440X1080	Sony IMX296	3.45	65.2	Global	CMOS	C
RET-5024-GM/GC	2/3"	5	2448X2048	Sony IMX264	3.45	24.2	Global	CMOS	C
RET-5035-GM/GC	2/3"	5	2448X2048	Sony IMX264	3.45	24.2/35.6	Global	CMOS	C
RET-6019-GM/GC	1/1.8"	6	3072X2048	Sony IMX178	2.4	19.1	Rolling	CMOS	C
RET-6030-GM/GC	1/1.8"	6	3072X2048	Sony IMX178	2.4	19.1/30.7	Rolling	CMOS	C
RET-20006-GM/GC	1"	20	5472X3648	Sony IMX183	2.4	5.9	Rolling	CMOS	C

Edit Content

Model No	Sensor Size	Pixel (MP)	Resolution	Sensor Model	Pixel size (μm)	Maximum frame rate (fps)	Shutter Type	Sensor Type	Lens Mount	Colour/Mono
RET-6060-UM/UC	1/1.8"	6	3072X2048	Sony IMX178	2.4	59.6	Global	CMOS	C
RET-20020-UM/UC	1"	20	5472X3648	Sony IMX183	2.4	19.66	Rolling	CMOS	C

Retina - N Series

Retina N-Series cameras are Normal series models. These models cover resolution from VGA to maximum 20 Mega-pixels. The series have GigE and USB3 connectivity protocols and having wide range of camera with CMOS Global and rolling shutter.

View Details

Edit Content

Retina- N Series GigE Camera
Retina- N Series USB3 Camera

Edit Content

Model No.	Sensor Size	Pixel (MP)	Resolution	Sensor Model	Pixel size (μm)	Maximum frame rate (fps)	Shutter Type	Sensor Type	Lens Mount
RET-03165-GM/GC	1/3"	0.3	640X480	SHARP	7.4	165	Global	CCD	C
RET-03380-GM/GC	1/5.6"	0.3	640X480	SmartSens	4.0	380	Global	CMOS	C
RET-03387-GM/GC	1/4"	0.3	640X480	PYTHON	4.8	387	Global	CMOS	C
RET-04298-GM/GC	1/2.9"	0.4	720X540	IMX287	298	6.3	Global	CMOS	C
RET-04298-GM/GC	1/3.6"	0.48	800X600	PYTHON480	4.8	119	Global	CMOS	C
RET-051594-GM/GC	1/1.7"	0.51	816X624	IMX426	9.0	1594	Global	CMOS	C
RET-1209-GM/GC	1"	1.2	4096X3072	XGS12000	3.2	9	Global	CMOS	C
RET-1210-GM/GC	1.1"	1.2	4096X3000	IMX304	3.45	9.6	Global	CMOS	C
RET-1330-GM/GC	1/2"	1.3	1280X1024	MT9M001	5.2	30	Rolling	CMOS	C
RET-1343A-GM/GC	1/3”	1.3	1280X960	SHARP	3.75	43	Global	CCD	C
RET-1347-GM/GC	1/2.7"	1.3	1272X1016	/	4.0	46.5	Global	/	C
RET-1390-GM/GC	1/2.7"	1.3	1280X1024	/	4	89.9	Global	CMOS	C
RET-1391-GM/GC	1/2.7"	1.3	1280X1024	SC130GS	4	91	Global	CMOS	C
RET-1391A-GM/GC	1/2"	1.3	1280X1024	PYTHON	4.8	91	Global	CMOS	C
RET-1491-GM/GC	1/2.7"	1.4	1280X1024	/	4.0	92	Global	/	C
RET-1676-GM/GC	1/2.9"	1.6	1440X1080	Sony IMX273	3.5	75.6	/	CMOS	C
RET-17662-GM/GC	1.1"	1.7	1600X1100	IMX425	9.0	662	Global	CMOS	C
RET-2027-GM/GC	1/1.8"	2	1600X1200	SHARP	4.4	27	Global	CCD	C
RET-2030-GC/GC	1/2.8"	2	1920X1080	SONY	2.98	30	Rolling	CMOS	C
RET-2060-GM/GC	1/1.8"	2	1600X1200	EV76C570	4.5	60	Global	CMOS	C
RET-2130-GM/GC	1/2.8"	2.1	1920X1080	/	2.9	30	Rolling	/	C
RET-2150-GM/GC	1/2.9"	2.1	1600X1300	/	3.0	49.7	Global	/	C
RET-2324-GM/GC	1/1.2"	2.3	1920X1200	/	5.86	23.4	Global	/	C
RET-2340-GM/GC	1/1.2"	2.3	1920X1200	IMX249	5.86	40	Global	CMOS	C
RET-2351-GM/GC	2/3“	2.3	1920X1200	PYTHON2000	4.8	51	Global	CMOS	C
RET-2352-GM/GC	1/2.6"	2.3	1920X1200	AR0234	3.0	52	Global	CMOS	C
RET-2441-GM/GC	1/1.2"	2.4	1920X1200	Sony IMX249	5.9	41	/	CMOS	C
RET-28409-GM/GC	2/3"	2.8	1936X1464	IMX421	4.5	409	Global	CMOS	C
RET-3038-GM/GC	1/1.8"	3	2048X1536	IMX265	3.45	38	Global	CMOS	C
RET-4029-GM/GC	1"	4	2040X2048	CMV4000	5.5	28.5	Global	CMOS	C
RET-40176-GM/GC	1"	4	2048X2048	CMV4000	5.5	176	Global	CMOS	C
RET-5007-GM/GC	1"	5	2736X1824	/	4.88	7	Rolling	/	C
RET-5009-GM/GC	2/3“	5	2448X2048	SHARP	3.45	9	Global	CCD	C
RET-5022-GM/GC	2/3“	5	2592X2048	XGS5000	3.2	22	Global	CMOS	C
RET-5024A-GM/GC	1/2.5"	5	2592X1944	AR0521	2.2	24	Rolling	CMOS	C
RET-50121-GM/GC	1/2"	5	2592X2160	GMAX2505	2.5	121	Global	CMOS	C
RET-10007-GM/GC	1/2.3"	10	3840X2748	OnSemi MT9J003	1.67	7	Rolling	CMOS	C
RET-10011-GM/GC	1/2.3"	10	3840X2748	OnSemi MT9J003	1.67	11.2	Rolling	CMOS	C
RET-12010-GM/GC	1/1.7"	12	4024X3036	Sony IMX226	1.85	9.6	Rolling	CMOS	C

Edit Content

Model No.	Sensor Size	Pixel (MP)	Resolution	Sensor Model	Pixel size (μm)	Maximum frame rate (fps)	Shutter Type	Sensor Type	Lens Mount
RET-03431-UM/UC	1/4"	0.3	640X480	PYTHON	4.8	431	Global	CMOS	C
RET-03790-UM/UC	1/5.6"	0.3	640X480	SmartSens	4.0	790	Global	CMOS	C
RET-03721-UM/UC	1/5"	0.31	640X480	/	4.0	721	Global	/	C
RET-04438-UM/UC	1/2.9"	0.39	720X540	Sony IMX287	6.9	438	/	CMOS	C
RET-05118-UM/UC	1/3.6"	0.48	800X600	PYTHON480	4.8	118	Global	CMOS	C
RET-13148-UM/UC	1/2.7"	1.3	1280X1024	SS	4	148	Rolling	CMOS	C
RET-13211-UM/UC	1/2"	1.3	1280X1024	PYTHON	4.8	211	Global	CMOS	C
RET-13245-UM/UC	1/2.7"	1.3	1280X1024	SC130GS	4.0	245	Global	CMOS	C
RET-14213-UM/UC	1/2.7"	1.4	1280X1024	/	4.0	213	Global	/	C
RET-1662-UM/UC	1/2.9"	1.6	1400X1080	Sony IMX296	3.45	61.2	/	CMOS	C
RET-16227-UM-UC	1/2.9"	1.6	1440x1080	Sony IMX273	3.45	227	/	CMOS	C
RET-2060-UM/UC	1/1.8"	2	1600X1200	EV76C570	4.5	60	Global	CMOS	C
RET-2170-UM/UC	1/2.8"	2.1	1920X1080	Sony IMX290	2.9	70	/	CMOS	C
RET-21140-UM/UC	1/1.8"	2.1	1920x1080	/	4.0	104	Rolling	/	C
RET-2340-UM/UC	1/1.2"	2.3	1920X1200	IMX249	5.86	40	Global	CMOS	C
RET-23165-UM/UC	2/3"	2.3	1920X1200	PYTHON2000	4.8	165	Global	CMOS	C
RET-2440-UM/UC	1/1.2"	2.4	1920X1200	/	5.86	40	Global	/	C
RET-2440A-UM/UC	1/1.2"	2.4	1920X1200	/	5.86	40	Global	/	C
RET-2441-UM/UC	1/1.2"	2.4	1920X1200	Sony IMX249	5.86	41	/	CMOS	C
RET-24168-UM/UC	1/1.2"	2.4	1920X1200	Sony IMX174	5.86	168	/	CMOS	C
RET-3235-UM/UC	1"	3.2	2044X1536	/	6.2	35	Rolling	/	C
RET-3256-UM/UC	1/1.8"	3.2	2048X1536	Sony IMX265	3.45	56	/	CMOS	C
RET-32125-UM/UC	1/1.8"	3.2	2048X1536	Sony IMX252	3.45	125	/	CMOS	C
RET-5040-UM/UC	2/3"	5	244SX2048	IMX264	3.45	40	Global	CMOS	C
RET-5059-UM/UC	1/2.5"	5	2592X1944	AR0521	2.2	59	Rolling	CMOS	C
RET-6043-UM/UC	1/1.8"	6	3072X2048	Sony IMX178	2.4	42.7	Rolling	CMOS	C
RET-12032-UM/UC	1/1.7"	12	1920X1200	Sony IMX226	1.85	31.9	Rolling	CMOS	C
RET-20019-UM/UC	1"	20	5472X3648	Sony IMX183	2.4	19.2	Rolling	CMOS	C
RET-20019N-UM/UC	1"	20	5472X3648	Sony IMX183	2.4	19.2	Rolling	CMOS	C

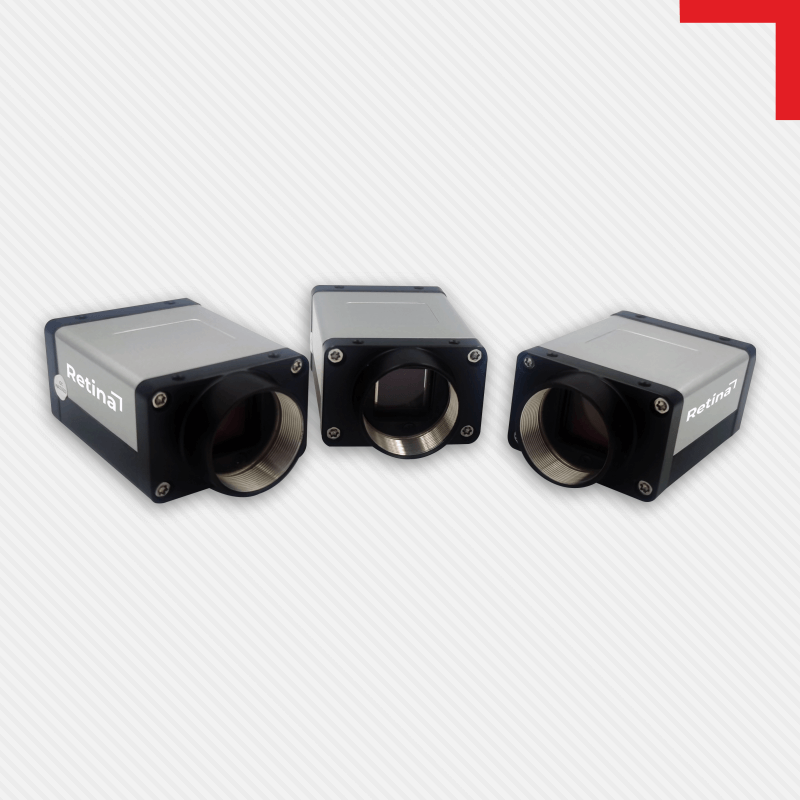

Retina - S Series

Retina S-Series cameras are Super-High-end series models. This series minimum resolution is 5.0 Mega-pixels and the maximum up-tom 40.0 Mega-pixels. S-Series is used where high resolution is required and high frame rates are required. The series have GigE and USB3 connectivity protocols and having wide range of camera with CMOS Global and rolling shutter.

View Details

Edit Content

Retina- S Series GigE Camera
Retina- S Series USB3 Camera

Edit Content

Model No.	Sensor Size	Pixel (MP)	Resolution	Sensor Model	Pixel size (μm)	Maximum frame rate (fps)	Shutter Type	Sensor Type	Lens Mount
RET-8913-GM/GC	1"	8.9	4096X2160	Sony IMX267	3.45	13	Global	CMOS	C
RET-12009-GM/GC	1.1"	12	4096X3000	Sony IMX304	3.45	9.4	Global	CMOS	C
RET-12010-GM	1"	12	4096X3072	OnSemi XGS12000	3.2	9.6	Global	CMOS	C
RET-120010A-GM/GC	1/2"	12	4000X3000	AR1202	1.65	9.5	Rolling	CMOS	C
RET-12090-GM/GC	1"	12	4096X3072	XGS12000	3.2	90	Global	CMOS	C
RET-12272-GC	1/3"	12.2	1280X960	AR0134	3.75	72	Global	CMOS	C
RET-12261-GM/GC	1/3"	12.2	1280X960	AR0135	3.75	60.6	Global	CMOS	C
RET-12309-GM/GC	1/1.7"	12.3	4024X3036	Sony IMX226	1.9	9	/	CMOS	C
RET-12610-GM/GC	1"	12.6	4088X3072	/	3.1	9.7	Rolling	/	C
RET-16007-GM/GC	1/2.3"	16	4608X3456	IMX206	1.34	7	Rolling	CMOS	C
RET-18064-GM/GC	1"	18	4512X4096	GMAX2518	2.5	64	Global	CMOS	C
RET-20206-GM/GC	1"	20.2	5496X3672	Sony IMX183	2.4	5.8	/	CMOS	C
RET-25042-GM/GC	1,1"	25	5120X5120	GMAX0505	2,5	42	Global	CMOS	C
RET-26004-GM/GC	1.1"	26	5120X5120	Gpixel GMAX0505	2.5	4.5	Global	CCD	C
RET-26004N-GM/GC	1.1"	26	5120X5120	Gpixel GMAX0505	2.5	4.5	Global	CCD	C
RET-26045-GM/GC	1.8"	26	6240X4168	IMX571	3.76	45	Rolling	CMOS	C
RET-31003-GM/GC	22.3mm*16.7mm	31	6464X4852	Sony IMX342	3.45	3.9	Global	CCD	F
RET-31035-GM/GC	27.9MM （APS-C）	31	6480X4860	IMX342	3.45	35	Global	CMOS	C
RET-47024-GM/GC	1.4"	47	8240X5628	IMX492	2.315	24	Rolling	CMOS	C

Edit Content

Model No.	Sensor Size	Pixel (MP)	Resolution	Sensor Model	Pixel size (μm)	Maximum frame rate (fps)	Shutter Type	Sensor Type	Lens Mount
RET-320120-UC	1/1.8"	32	2048X1536	Sony IMX252	3.45	120	Global	CMOS	C
RET-5074-UM/UC	2/3"	5	2448X2048	Sony IMX250	3.45	74	Global	CMOS	C
RET-8932-UM/UC	1"	8.9	4096X2160	Sony IMX267	3.45	32	Global	CMOS	C
RET-12023-UM/UC	1"	12	4096X3000	Sony IMX304	3.45	23.1	Global	CMOS	C
RET-12023A-UM/UC	1.1"	12	4096X3000	IMX304	3.45	23	Global	CMOS	C
RET-12028-UM/UC	1"	12	4096X3072	OnSemi XGS12000	3.2	28	Global	CMOS	C
RET-12031-UM/UC	1"	12	4080X3072	RJ5DY1BA0U	3.1	30.5	Rolling	CMOS	C
RET-12037-UM/UC	1/1.7"	12	4000X3000	/	1.85	37	Rolling	CMOS	C
RET-12324-UM/UC	1.1"	12.3	4096X3000	Sony IMX304	3.45	23.5	/	CMOS	C
RET-12233-UM/UC	1/1.7"	12.3	4024X3036	Sony IMX226	1.85	32.3	/	CMOS	C
RET-12615-UM/UC	1"	12.6	4088X3072	/	3.1	15	Rolling	/	C
RET-12635-UM/UC	1"	12.6	4088X3072	/	3.1	35	Rolling	CMOS	C
RET-12631-UM/UC	1"	12.6	4096X3072	/	3.2	31	Global	CMOS	C
RET-16012-UM/UC	1/2.3"	16	4608X3456	IMX206	1.34	12	Rolling	CMOS	C
RET-16020-UM/UC	1/2.3"	16	4608X3456	/	1.34	20	Rolling	/	C
RET-20007-UM/UC	1"	20	5480X3648	/	2.4	7	Rolling	/	C
RET-20022-UM/UC	1"	20	5480X3648	/	2.4	22	Rolling	/	C
RET-20220-UM/UC	1"	20.2	5496X3672	Sony IMX183	2.4	19.6	/	CMOS	C
RET-20922-UM/UC	4/3"	20.9	5280X3952	/	3.45	22	Rolling	/	C
RET-25014A-UM/UC	1.1"	25	5120X5120	Gpixel GMAX0505	2.5	14	Global	CMOS	C
RET-26316-UM/UC	1.1"	26.3	5120X5120	GMAX0505	2.5	15.1	/	CMOS	C
RET-40088-UM/UC	1"	40	2048X2048	CMV4000	5.5	88	Global	CMOS	C

Area Scan Camera

Key Features of Retina Vision Camera

PRODUCTS LINEUP : RETINA VISION

Product Brochure

Product Inquiry

Product Brochure

Product Inquiry

Product Brochure

Product Inquiry

Product Brochure

Product Inquiry

A Global product and solution supplier specialized in Vision Camera

Contact

Email

For Support

Menu

Product

Copyright (C) 2012-2023 Retina Vision. All Rights Reserved.

A Global product and solution supplier specialized in Vision Camera

Contact

Email

For Support

Menu

Product

Copyright (C) 2012-2023 Retina Vision. All Rights Reserved.

Copyright (C) 2012-2023 Retina Vision.
All Rights Reserved.
